Hybrid Solar Inverter
Hybrid Solar Inverter with inbuilt MPPT Controller
|
Product name : DC to DC Power Supply Regulator 5V 6V 7.5V 9V 11V to 12V 10A 120W DC Boost Converter
Item : QW-XW0511-12-120W
 |
| Details: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DC to DC power supply regulator 5v 6v 7.5v 9v 11v to 12v 10A 120W dc boost converter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Name |
DC to DC Boost Converter |
|
Model No. |
XW-0511-12-60W |
|
Module Properties |
Non-isolated Module |
|
Rectification |
Synchronous Rectification |
|
|
|
|
Input Voltage Range |
DC 5-11V |
|
Output Voltage |
DC 12V |
|
Output Current |
5A |
|
Output Power |
60W |
|
Conversion Efficiency |
>93% |
|
Cable Length |
13-14cm |
|
Ripple (Full load test) |
40mV |
|
No-load current |
25mA |
|
Working Temperature |
-40~80ºC( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
|
Waterproof Rating |
IP67 |
|
Protection |
Over-current /Over-voltage/Over-heat/Short-circuit |
|
Waterproof, Anti-shock , Anti-dust protection |
|
|
Shell Material |
Aluminum |
|
Size /Packing |
74*74*32mm, 260g, Anti-static Bag |
|
Warranty |
12 months |
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

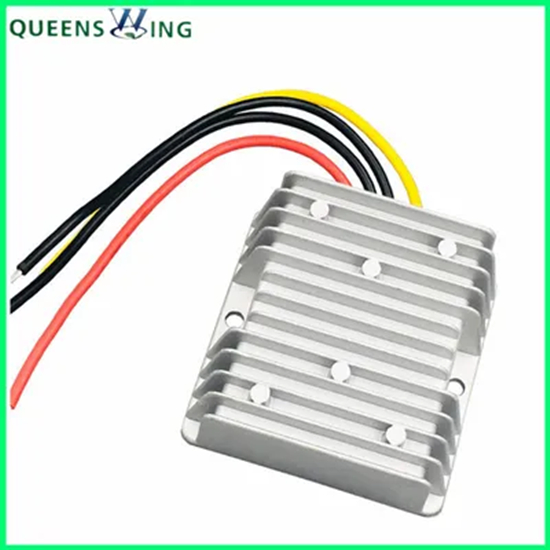

Product Pictures
|
Type |
Model/ Series |
Voltage convert |
Output Current |
|
Boost |
XW-DTD5S12** |
5v to 12v |
1/2/3/5/8/10A |
|
XW-DTD12S13.8** |
12v to 13.8v |
1/2/3/5/8/10/18A |
|
|
XW-DTD12S15** |
12v to 15v |
1/2/3/5/8/10/15A |
|
|
XW-DTD12S19** |
12v to 19v |
5/8/10/15/20A |
|
|
XW-DTD12S24** |
12v to 24v |
1/2/3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S28 |
12v to 28v |
3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S32/36** |
12v to 32v/36v |
1/2/3/5/6/10/12/15/20/30A |
|
|
XW-DTD12S48** |
12v to 48v |
1/2/3/4/5/8/10/15/20A |
|
|
XW-DTD24S48** |
24v to 48v |
3/5/10/20/32/42A |
|
|
Buck |
XW-DTD1224S3.3-9** |
12v/24v to 3.3-9v |
1/2/3/5/10/15/20/30/50/60A |
|
XW-DTD24S12** |
24v to 12v |
1/2/3/5/8/10/15/20/30/40/50/60/85A |
|
|
XW-DTD3648S5** |
36v/48v to 5v |
3/5/6/8/10/12/15/20/25A |
|
|
XW-DTD3648S12** |
36v/48v to 12v |
5/10/15/20/25A |
|
|
XW-DTD3648S24** |
36v/48v to 24v |
5/8/10/12/15/18/20A |
|
|
XW-DTD48S36** |
48v to 36v |
5/10A |
|
|
XW-DTD60S5** |
60v to 5v |
5/10/15/20A |
|
|
XW-DTD60S12** |
60v to 12v |
5/8/10/12/15/20A |
|
|
XW-DTD60S24** |
60v to 24v |
5/10/15A |
|
|
XW-DTD60S36** |
60v to 36v |
3/5/8/10/15A |
|
|
Auto Buck and Boost |
XW-DTD12S12 |
12v to 12v |
1/2/3/4/6/8/10/12A |
|
XW-DTD12S13.8 |
12v to 13.8v |
3/5/10A |
|
|
XW-DTD24S24 |
24v to 24v |
1/2/3/5/8/10A |
7. Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.
Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
