Products > DC Converter > > DC DC 24V 36V 48V 60V to 5V Step Down Buck Converter 5V 6A 10A 15A

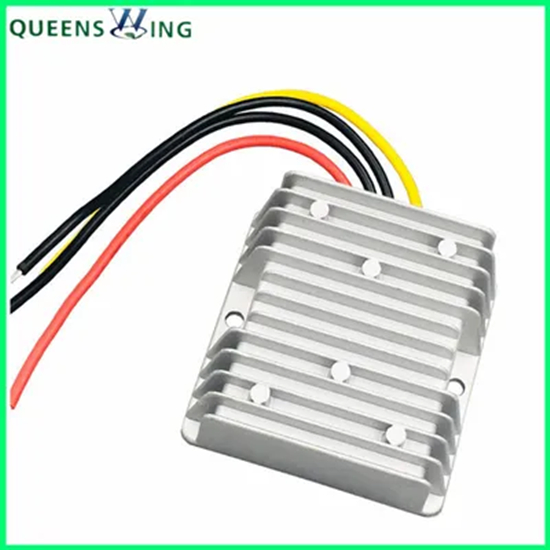

Product name : DC DC 24V 36V 48V 60V to 5V Step Down Buck Converter 5V 6A 10A 15A
Item : XW-60-5-25W~75W
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
DC DC 24v 36v 48v 60v to 5v Step down buck converter 5v 6A 10A 15A


Overview

A buck or step-down topology is used in DC-DC switching converters where the output voltage is lower than the input with or without input-output isolation.

Specification

Model No.

XW-60-5-30W~75W



Input

Input Voltage

DC 60V

Input Voltage Range

DC 8-60V



Output

Output Voltage

DC 5V

Output Current

6A 10A 15A

Output Power

30W 50W 75W

 Conversion Efficiency

> 93%

Ripple (Full load test)

40mV

No-load current

17mA

Working Temperature

-40~85ºC

Waterproof Rating

IP67

Cable Length

13-14cm

Protection

Over-current /Over-voltage/Over-heat /Short-circuit protection

Case Material

Aluminum

Size

74*74*32MM   260g/pc

Packing

Anti-Static Bag, 75 pcs/Carton 48*33*32cm, GW:20KG



Attention:



Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged



To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.


Product Pictures
Features:

Type

Model/ Series

Voltage convert
Input to output

Output Current
(Be option)

Boost
DC-DC Converter

XW-DTD5S12**

5v to 12v

1/2/3/5/8/10A

XW-DTD12S13.8**

12v to 13.8v

1/2/3/5/8/10/18A

XW-DTD12S15**

12v to 15v

1/2/3/5/8/10/15A

XW-DTD12S19**

12v to 19v

5/8/10/15/20A

XW-DTD12S24**

12v to 24v

1/2/3/5/8/10/15/20/25/30/40A

XW-DTD12S28

12v to 28v

3/5/8/10/15/20/25/30/40A

XW-DTD12S32/36**

12v to 32v/36v

1/2/3/5/6/10/12/15/20/30A

XW-DTD12S48**

12v to 48v

1/2/3/4/5/8/10/15/20A

XW-DTD24S48**

24v to 48v

3/5/10/20/32/42A

Buck
DC-DC Converter

XW-DTD1224S3.3-9**

12v/24v to 3.3-9v

1/2/3/5/10/15/20/30/50/60A

XW-DTD24S12**

24v to 12v

1/2/3/5/8/10/15/20/30/40/50/60/85A

XW-DTD3648S5**

36v/48v to 5v

3/5/6/8/10/12/15/20/25A

XW-DTD3648S12**

36v/48v to 12v

5/10/15/20/25A

XW-DTD3648S24**

36v/48v to 24v

5/8/10/12/15/18/20A

XW-DTD48S36**

48v to 36v

5/10A

XW-DTD60S5**

60v to 5v

5/10/15/20A

XW-DTD60S12**

60v to 12v

5/8/10/12/15/20A

XW-DTD60S24**

60v to 24v

5/10/15A

XW-DTD60S36**

60v to 36v

3/5/8/10/15A

Auto Buck and Boost
DC-DC Converter

XW-DTD12S12

12v to 12v

1/2/3/4/6/8/10/12A

XW-DTD12S13.8

12v to 13.8v

3/5/10A

XW-DTD24S24

24v to 24v

1/2/3/5/8/10A

7. Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
