Product name : Boost Converter DC-DC 12V to 28V DC Step up Converter 1A 3A 5A 10A 15A 20A 40A Output High Power Converter
Item : QW-XW12-28-1A
 |
| Details: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Boost converter dc-dc 12v to 28v dc step up converter 1-40amp output high current power converter Overview
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Name |
DC to DC Boost Converter |
|
Model No. |
XW-12-28-28W~1120W |
|
Module Properties |
Non-isolated Module |
|
Rectification |
Synchronous Rectification |
|
|
|
|
Input Voltage |
DC 12V |
|
Input Voltage Range |
DC 9-27V / 9-22V (High Power) |
|
Output Voltage |
DC 28V |
|
Output Current |
1A / 2A /3A /5A /8A /10A /12A / |
|
Output Power |
28W / 56W / 84W/ 140W / 224W/ 280W/ 336W / |
|
Conversion Efficiency |
>93% |
|
Cable Length |
13-14cm / Screw terminals |
|
Ripple (Full load test) |
(1-12A)40mV ; (15-40A)<170mV |
|
No-load current |
(1-3A) 3.5mA; (3-12A)25mA; (15-40A)40mA |
|
Working Temperature |
-40~80ºC |
|
Waterproof Rating |
IP67/IP68 ( Iron shell is not waterfroof) |
|
Protection |
Over-current /Over-voltage/Over-heat/Short-circuit |
|
Application |
Mobile phone, Car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,Water pumps, Industrial equipment ect |
|
Size /Packing |
1-3A ABS Plastic 58*40.5*22mm, 95g, Anti-static Bag |
|
3-12A Aluminum 74*74*32mm, 260g, Anti-static Bag |
|
|
15A/20A Iron 118*87*40mm, 370g, Bubble Bag |
|
|
15A/20A Aluminum 100*80*39mm, 550g, White Box |
|
|
25A/30A Aluminum 150*127*63mm, 1.6kg, Carton Box |
|
|
40A Aluminum 220*127*63mm, 2.3kg, Carton Box |
|
|
Warranty |
12 months |
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

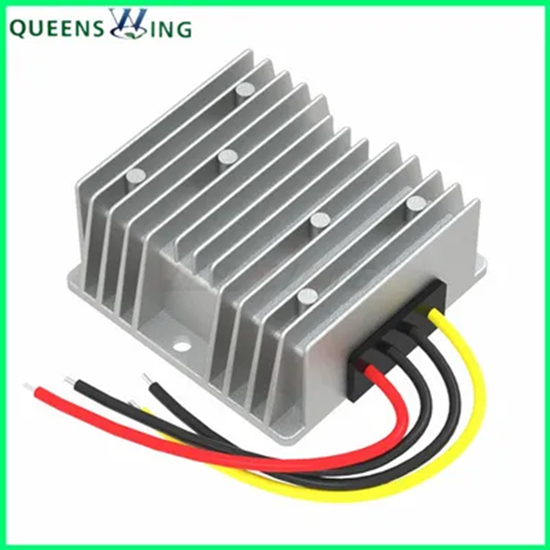

Product Pictures
|
Type |
Model/ Series |
Voltage convert |
Output Current |
|
Boost |
XW-DTD5S12** |
5v to 12v |
1/2/3/5/8/10A |
|
XW-DTD12S13.8** |
12v to 13.8v |
1/2/3/5/8/10/18A |
|
|
XW-DTD12S15** |
12v to 15v |
1/2/3/5/8/10/15A |
|
|
XW-DTD12S19** |
12v to 19v |
5/8/10/15/20A |
|
|
XW-DTD12S24** |
12v to 24v |
1/2/3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S28 |
12v to 28v |
3/5/8/10/15/20/25/30/40A |
|
|
XW-DTD12S32/36** |
12v to 32v/36v |
1/2/3/5/6/10/12/15/20/30A |
|
|
XW-DTD12S48** |
12v to 48v |
1/2/3/4/5/8/10/15/20A |
|
|
XW-DTD24S48** |
24v to 48v |
3/5/10/20/32/42A |
|
|
Buck |
XW-DTD1224S3.3-9** |
12v/24v to 3.3-9v |
1/2/3/5/10/15/20/30/50/60A |
|
XW-DTD24S12** |
24v to 12v |
1/2/3/5/8/10/15/20/30/40/50/60/85A |
|
|
XW-DTD3648S5** |
36v/48v to 5v |
3/5/6/8/10/12/15/20/25A |
|
|
XW-DTD3648S12** |
36v/48v to 12v |
5/10/15/20/25A |
|
|
XW-DTD3648S24** |
36v/48v to 24v |
5/8/10/12/15/18/20A |
|
|
XW-DTD48S36** |
48v to 36v |
5/10A |
|
|
XW-DTD60S5** |
60v to 5v |
5/10/15/20A |
|
|
XW-DTD60S12** |
60v to 12v |
5/8/10/12/15/20A |
|
|
XW-DTD60S24** |
60v to 24v |
5/10/15A |
|
|
XW-DTD60S36** |
60v to 36v |
3/5/8/10/15A |
|
|
Auto Buck and Boost |
XW-DTD12S12 |
12v to 12v |
1/2/3/4/6/8/10/12A |
|
XW-DTD12S13.8 |
12v to 13.8v |
3/5/10A |
|
|
XW-DTD24S24 |
24v to 24v |
1/2/3/5/8/10A |
7. Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.
Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
