Products > Hybrid Solar Inverter > Hybrid Solar Inverter with inbuilt MPPT Controller > 11kw/11kVA 48VDC MPPT 160A Max. PV Input 11000W 60-500VDC Hybrid Solar Power Inverter (can work without battery)

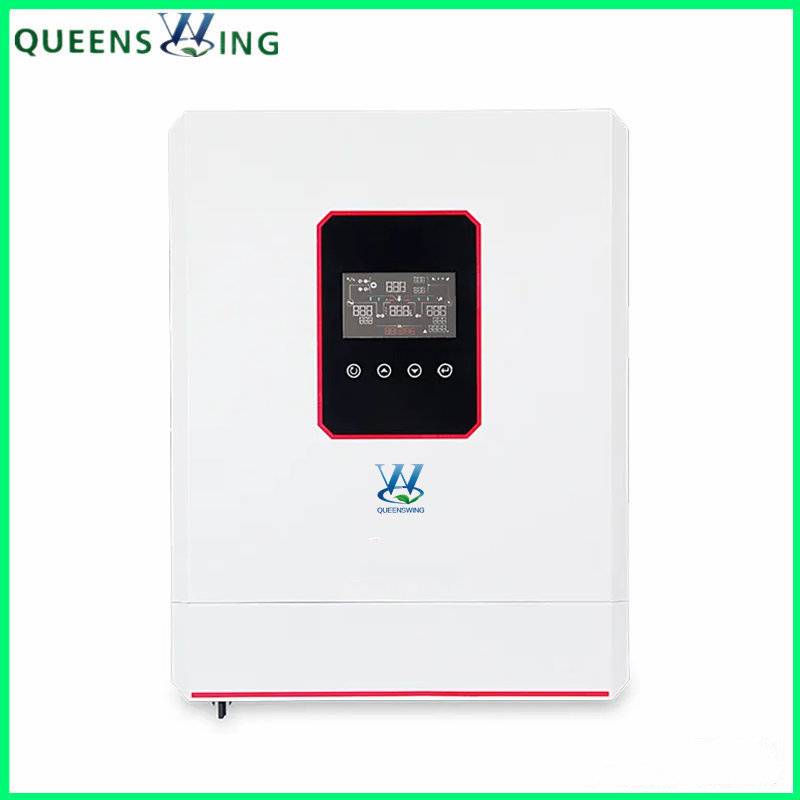

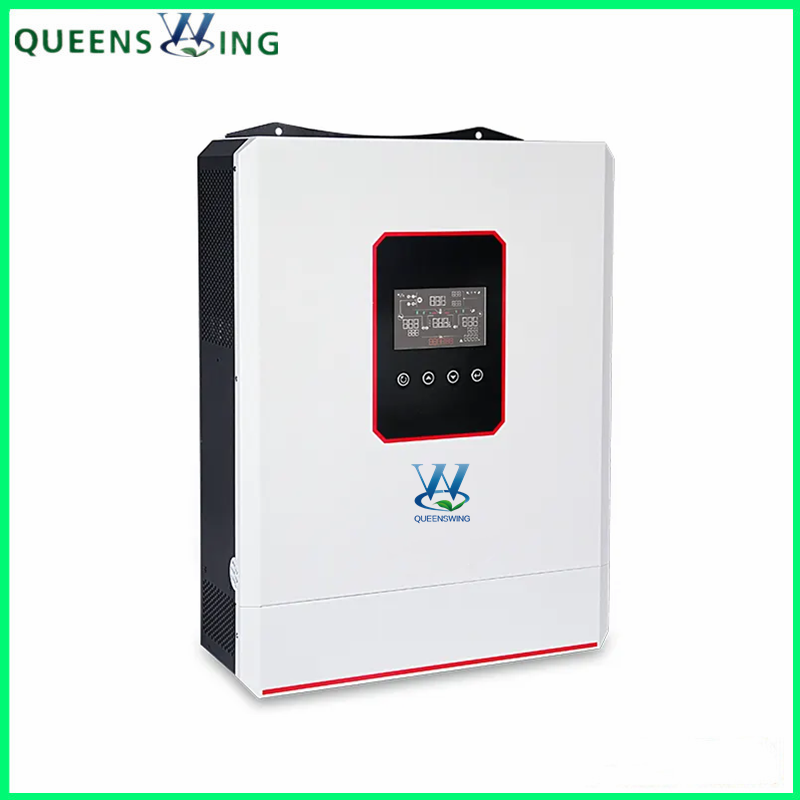

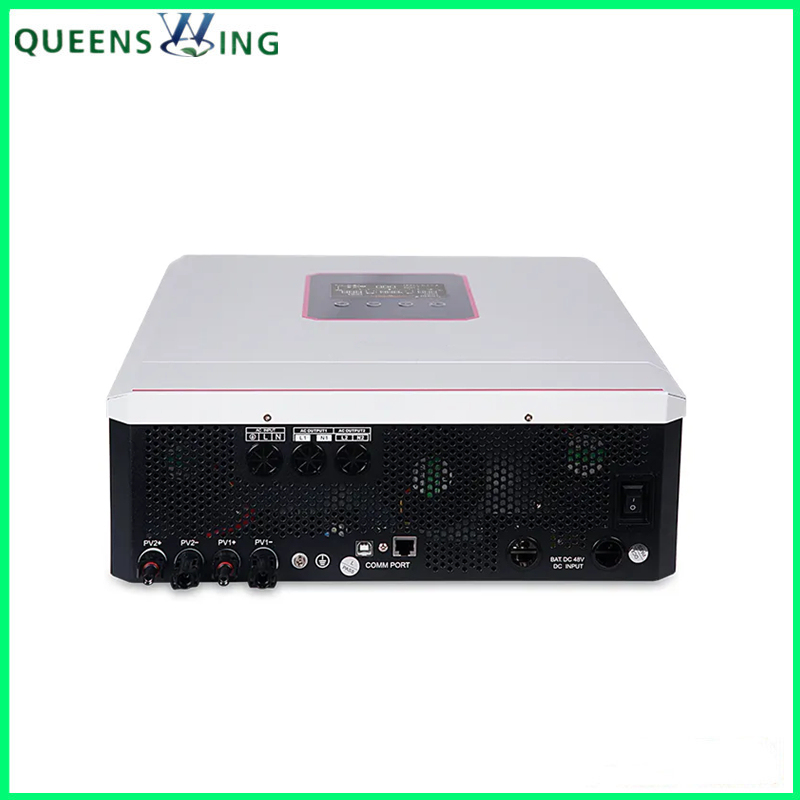

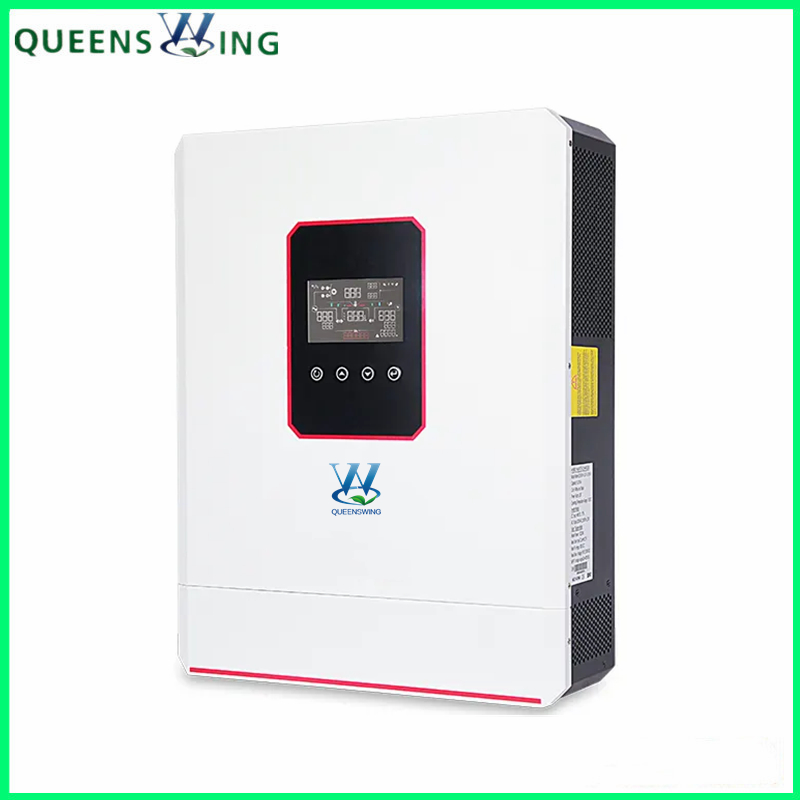

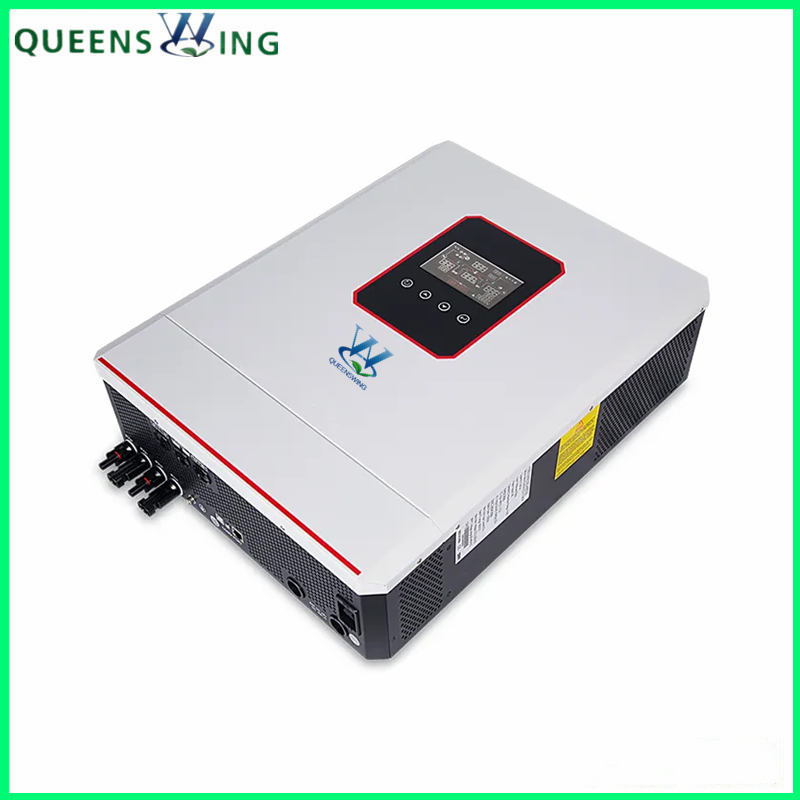

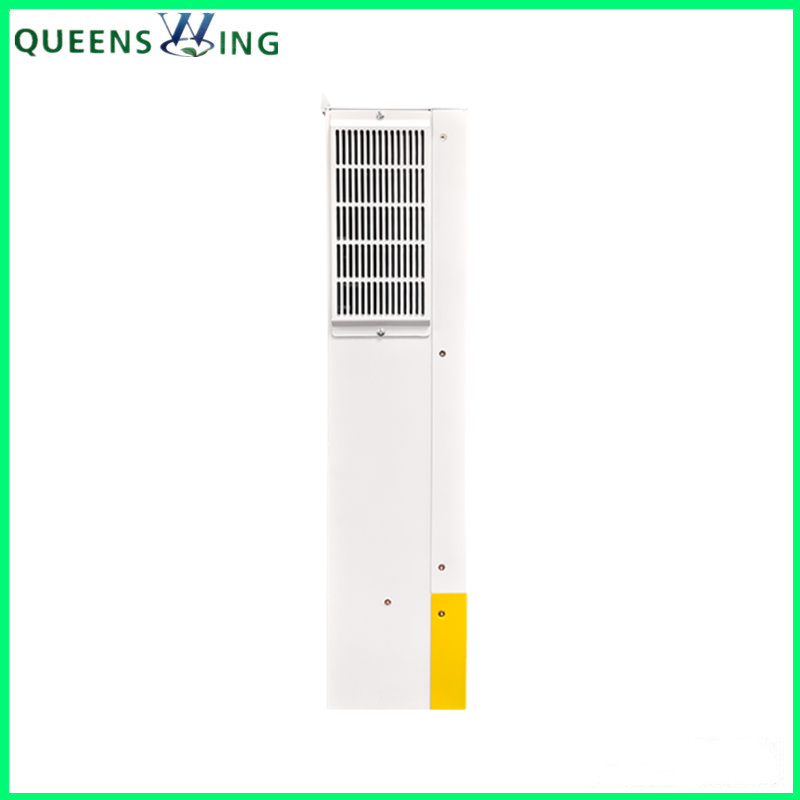

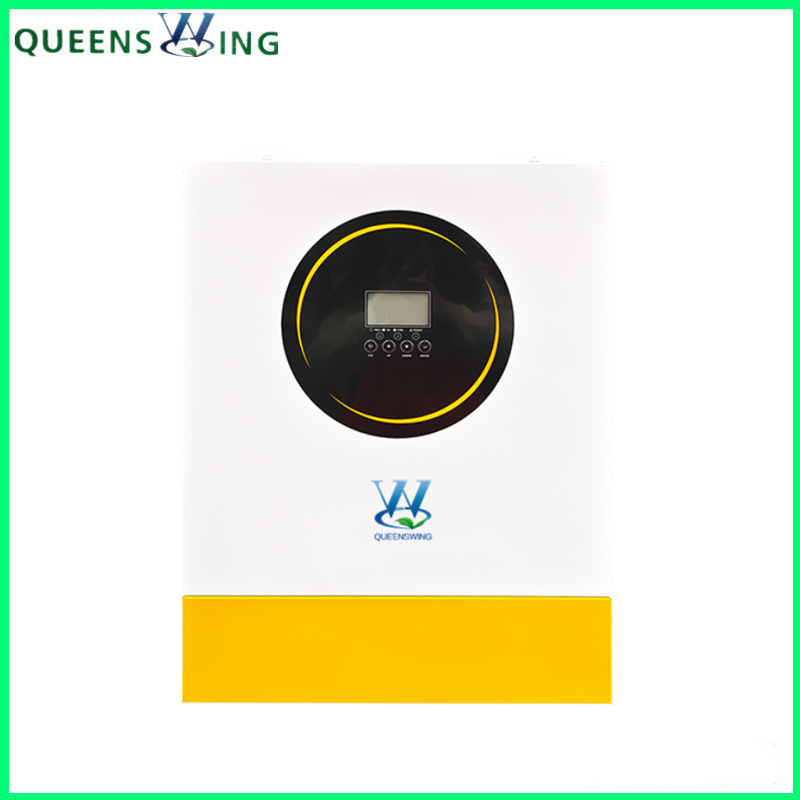

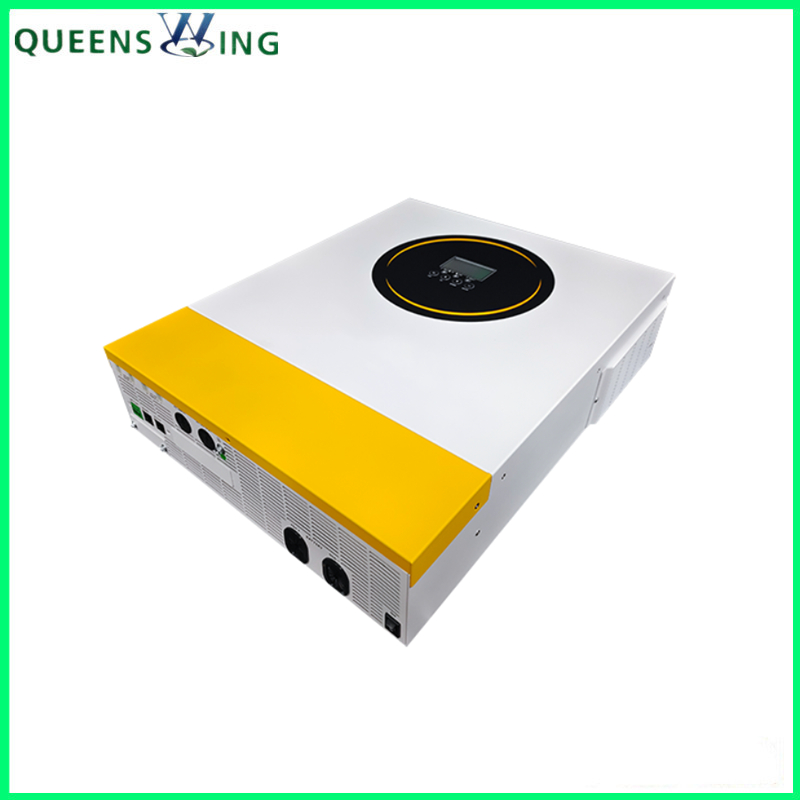

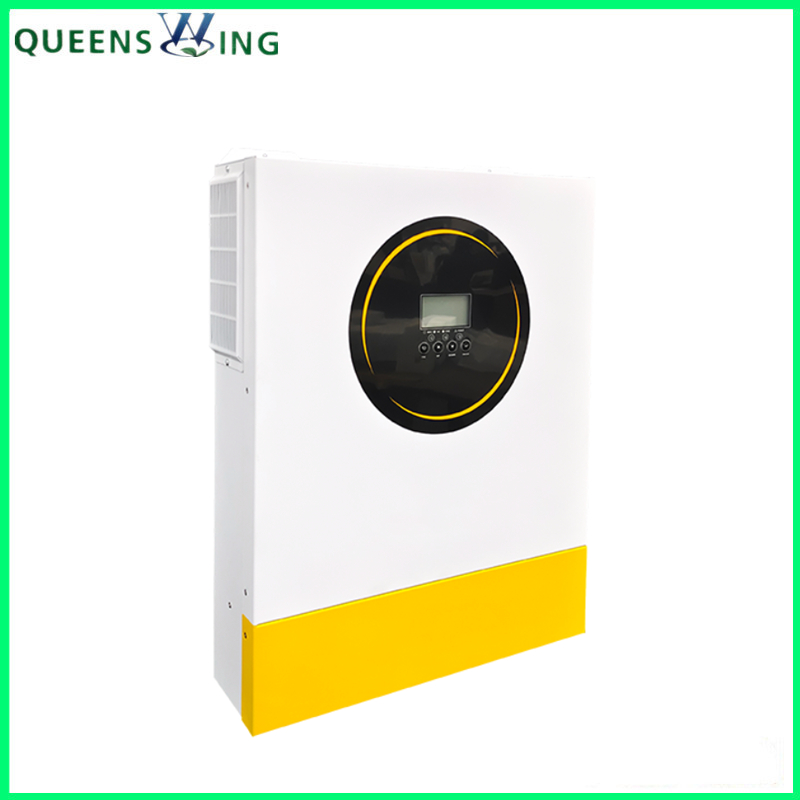

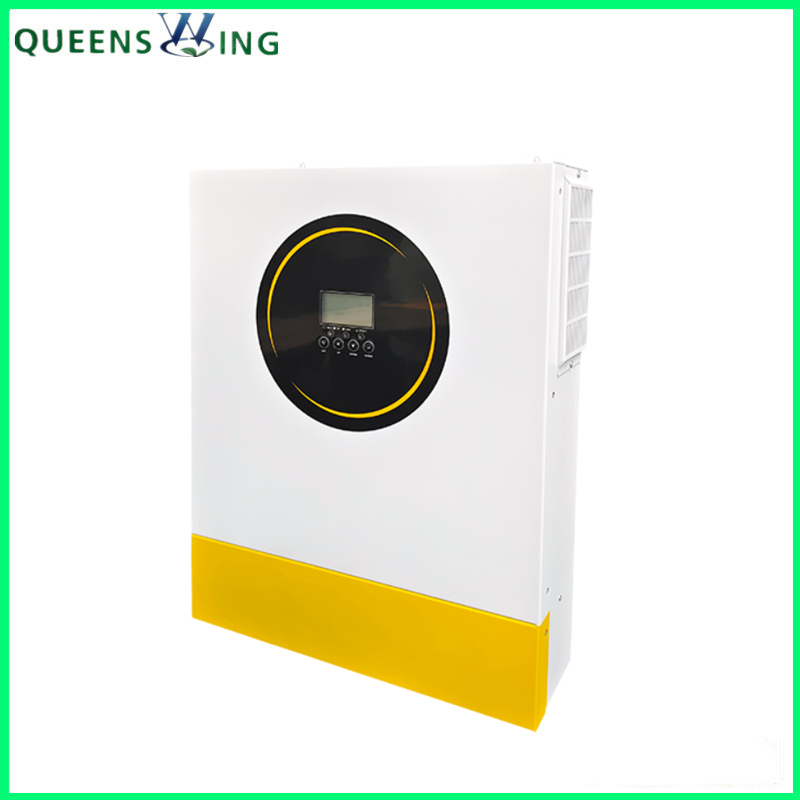

Product name : 11kw/11kVA 48VDC MPPT 160A Max. PV Input 11000W 60-500VDC Hybrid Solar Power Inverter (can work without battery)
Item : QW11000-48V
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
11kw/11kVA 48VDC MPPT 160A Max. PV Input 11000W 60-500VDC Hybrid Solar Power Inverter (can work without battery)

Product Features
• Built-in 2 MPPT
• Lithium battery activation function by PV or Utility
• Compatible work with LiFePO4 battery via RS485
• Pure Sine Wave
• Power factor 1.0
• PV Input 500Vdc Max
• Built-in MPPT 160A, max 11000W PV input
• Capatible to work without battery
• Detachable dust cover for harsh environment
• Wifi remote monitoring optional
• Support multiple output priority: UTL, SOL, SBU, SUB
• EQ function to optimize battery performance and extend lifecycle

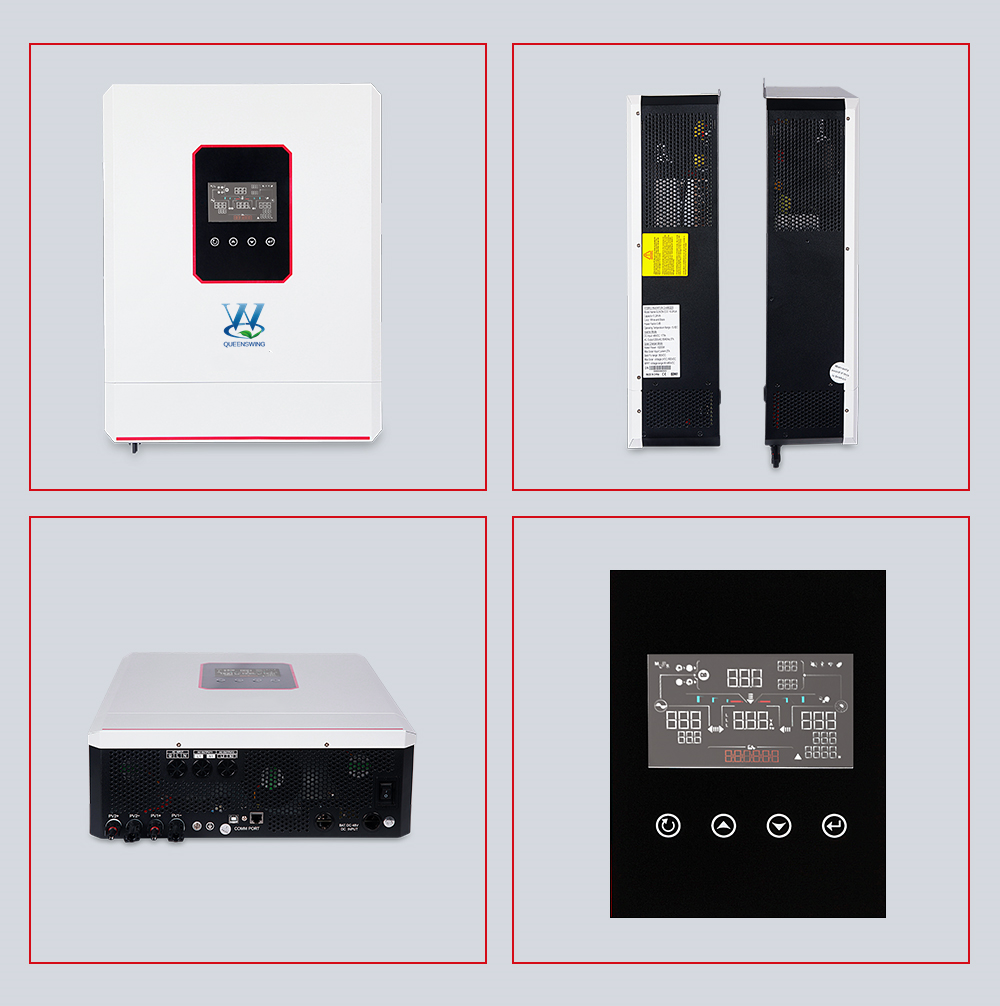

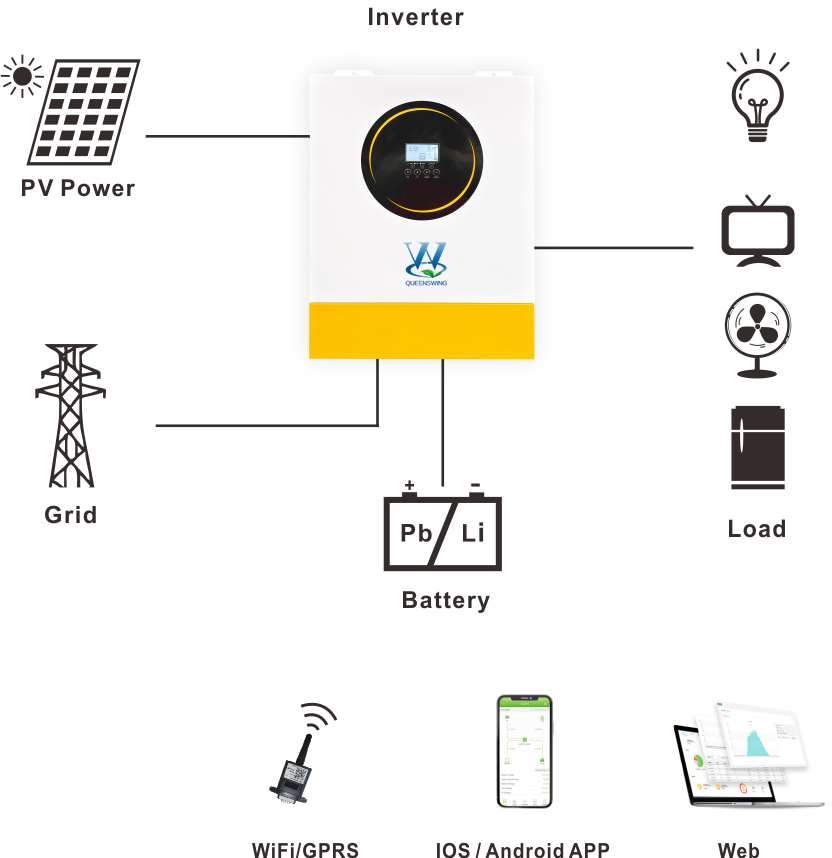

Product Overview

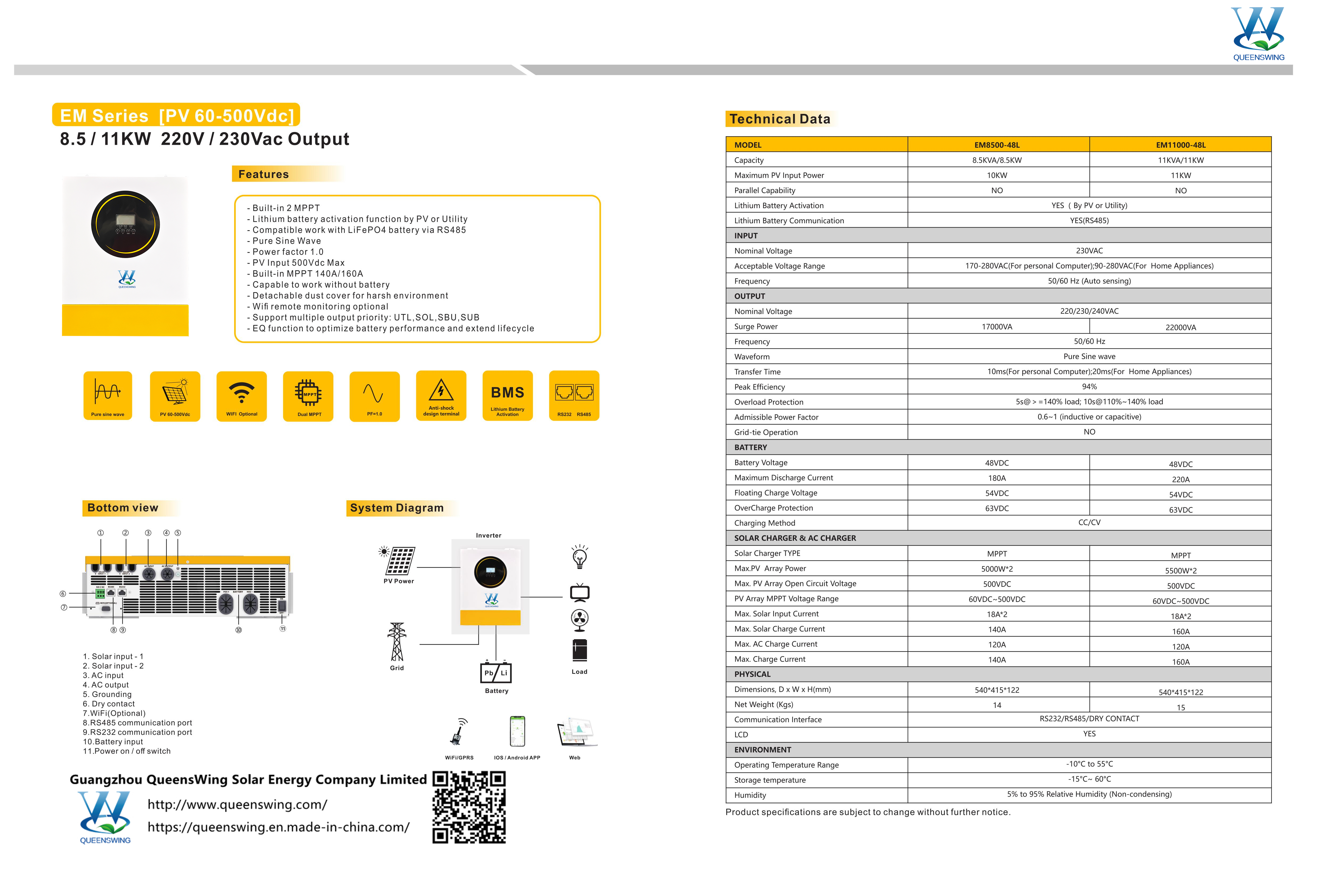

 Technical Data

11kw/11kVA 48VDC MPPT 160A Max. PV Input 11000W 60-500VDC Hybrid Solar Power Inverter (can work without battery) (QW11000-48)

Model

8.5K-48V

11K-48V

Rated Power

8500VA/8500W

11000VA/11000W

INPUT

Nominal Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)

Frequency Range

50 / 60Hz (optional)

OUTPUT

Nominal Voltage

220/230/240VAC

Surge Power

17000VA

22000VA

Transfer Time

10 ms (For Personal Computer)
20 ms (For Home Appliances)

Waveform

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

48 VDC

48 VDC

Floating Charge Voltage

54 VDC

 54 VDC

Overcharge Protection

63 VDC

63 VDC

Maximum AC Charge Current

120A

120A

SOLAR CHARGER

Maximum PV Array Power

10000W

11000W

MPPT Range @ Operating Voltage

60-500VDC

60-500VDC

Maximum PV Array Open Circuit
Voltage

500VDC

500VDC

Maximum Charging Current

140A

160A
Maximum Solar Input Current 18A*2 18A*2

PHYSICAL

Dimension, D x W x H(mm)

540x415x122mm

540x415x122mm

Gross Weight(kg)

15.5

16.5

Communication Interface

RS232/RS485/DRY CONTACT

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10ºC - 55°C

Storage Temperature

-15ºC - 60°C

Product specifications are subject to change without further notice

MODEL

8.5K-48V

11K-48V

Inverter Power

8500W

11000W

Pmax.generated from solar charger

140Amp, 10000W

160Amp, 11000W

Best Panel Configuration

450Wp x 24pcs

550Wp x 18pcs
