Product name : 12V/24V/48VAUTO 40A/60A MPPT Solar Controllers
Item : QW-SCC Series
Price : Please contact us
 Enlarge Image                   Back
             [Next Product]→


Details:




INTRODUCTION:

Thank you for selecting this solar charge controller. This solar charge controller is an advanced solar charger with maximum power point tracking. Applying intelligent MPPT algorithm, it allows solar charge controller to extract maximum power from solar arrays by finding the maximum power point of the array.

The MPPT battery charging process has been optimized for long battery life and improved system performance. Self diagnostics and electronic error protections prevent damage when installation errors or system faults occur. This charger also features multifunctional LCD with communication ports for remote battery temperature and voltage measurement.


Features:

• Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
• Compatible for PV systems in 12V, 24V or 48V
• Three-stage charging optimizes battery performance
• Maximum charging current up to 60A
• Maximum efficiency up to 98%
• Battery temperature sensor (BTS) automatically provides temperature compensation
• Automatic battery voltage detection
• Support wide range of lead-acid batteries including wet, AGM and gel batteries
• Integrated intelligent slot compatible with SNMP/MODBUS communication

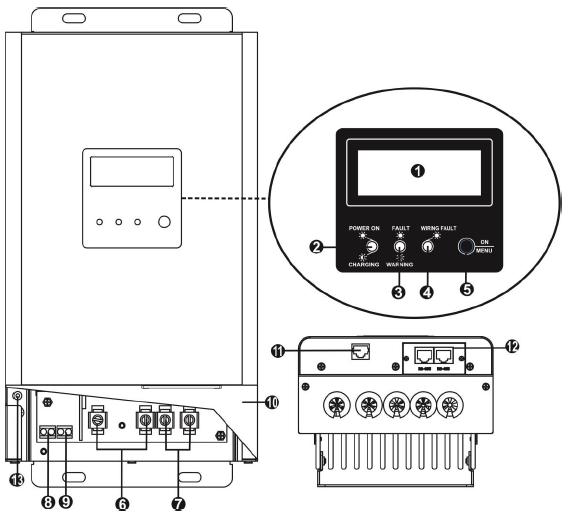

Product Overview:

1. LCD display

2. Power On/Charging indicator

3. Fault and warning indicator

4. Wiring fault indicator

5. Operation button

6. PV connectors

7. Battery connectors

8. Remote temperature sensor terminal

9. Battery voltage sense terminal

10. Wiring box cover

11. Communication port

12. Intelligent slot

13. Grounding terminal


SPECIFICATIONS:


Table 1 Electrical Specifications

MODEL  MPPT 3KW
Nominal System Voltage  12, 24, or 48 VDC (Auto detection)
Maximum Battery Current  60 Amps
Maximum Solar Input Voltage 145V
PV Array MPPT Voltage Range 12 Volte-- 15-115VDC
24 Volte-- 30-115VDC
48 Volte-- 60-115VDC
Maximum Input Power 12 Volt--800 Watts
24 Volt--1600 Watts
48 Volt--3200 Watts

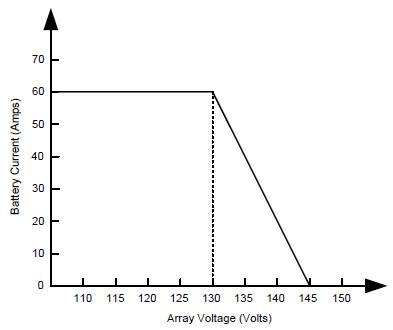

PV Array voltage & Battery Current

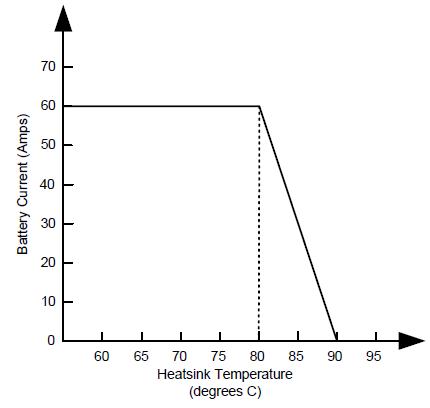

Heatsink Temperature & Battery Current
Transient Surge Protection 4500 Watts / port
Protections Solar high voltage disconnect
Solar high voltage reconnect
Battery high voltage disconnect
Battery high voltage reconnect
High temperature disconnect
High temperature reconnect


Table 2 Battery Charging

MODEL  MPPT 3KW
Charging Algorithm 3-Step
Charging stages  Bulk, Absorption, Float
Temperature compensation coefficient -5 mV / °C / cell (25 °C ref.)
Temperature compensation range 0 °C to +50 °C
Temperature compensated set points Absorption, Float
Charging Set points Absorption Stage Float Stage
Flooded Battery 14.6V / 29.2V / 58.4V 13.5V / 27V / 54V
AGM/Gel Battery
(Default)
14.1V / 28.2V / 56.4V 13.5V / 27V / 54V
Over-charging voltage 15V / 30V / 60V
Over-charging comeback voltage 14.5V / 29V / 58V
Battery defect voltage 8.5V / 17V / 34V
Battery defect comeback voltage 9V / 18V / 36V

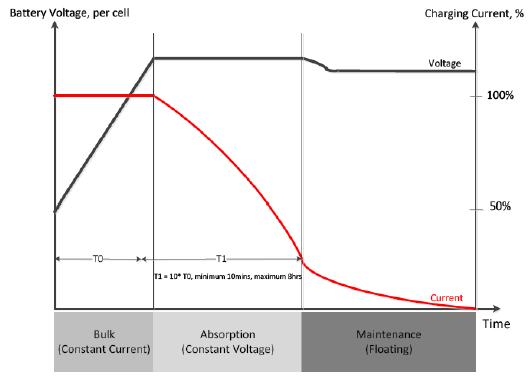

Charging Curve


Table 3 Mechanical and Environment

Charger MODEL MPPT 3K
Product size (W x H x D,mm) 315 x 165 x 128mm
Product weight (Kg) 4.5kg
Ambient Temperature Range 0°C to 55°C
Storage Temperature (-40°C to 75°C)
Humidity 0%-90% RH(No condensing)
Enclosure IP31 (indoor & vented)
